Glass Lifter Sucker

Jumbo Size Electrical Lifter Sucker-859
Jumbo Size Electrical Lifter Sucker-862
Jumbo Size Electrical Lifter Sucker-860
Jumbo Size Electrical Lifter Sucker-861

Jumbo Size Electrical Lifter Sucker

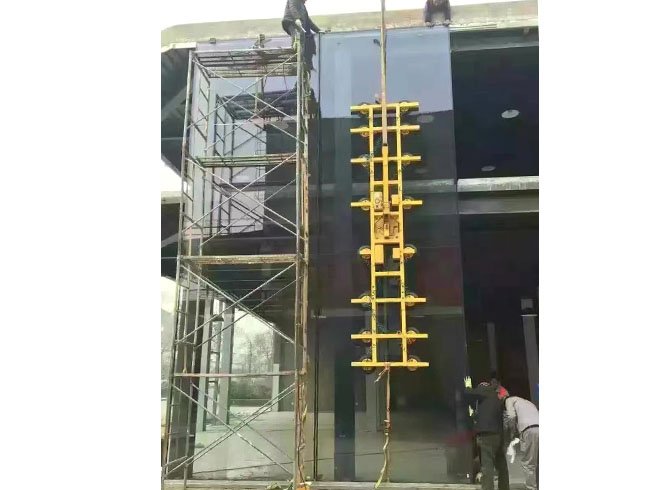

This lifter sucker is designed specially for super large glass, especially for the curtain wall installation and jumbo size glass movement, it is safe and efficient. There are 24 sucker cups and the max loading capacity ups to 2000KGS. The protection equipment against power failure and vacuum leakage makes the operation more safe.


Share:

Product Details

Parameter

Quantity of Sucker

24(Customized)

Max Loading Capacity

2000KGS

Operating Voltage

DV48V / AC380V (Optional)

Battery Working Life

15~20hours

Rotation Angle

No Allowed

Tilting Angle

Electric 90°

Control Method

Remote Control

Air Supply

Electric Vacuum Pump Compressed Air 6pa~8pa

Safety Protection

Power off protection for 15minutes without glass falling off

Optical and acoustic signal warning against power failure or vacuum leakage
